Star King Tech simple frequency inverter is used in ventilation fans in South Africa
In this case, the simple frequency converter applied to the ventilation fan of the South African gold mine is introduced to illustrate the economy and characteristics.
[Project name]: Ventilation system in a mine in South Africa
[Use product]: SKT100 simple Frequency inverter
[Use advantage]: Energy saving,Prolong the system service life
[Key words]: Simple Frequency inverter,Mine,Energy saving,Ventilation system
Share:
Release time: 2021-06-02
Project introduction
The mine, located in Gauteng province in South Africa, is privately owned. The mine has a ventilation system that uses baffles to control air speed and airflow. This is an ancient method of technological speed control which has the following disadvantages:
(1)Narrow adjusted speed range
Due to baffle control method can’t be elaboration and sensitive, so the system adjusted speed range is narrow.
(2)High power loss
Because of baffle control method is an old and outmoded speed control technology, there is much power consumption during speed adjust period.
System Configuration
(1)Motor introduction
Motor Model | Power | Rated Voltage | Rated Current | Rated Speed | Power Factor | Load Type |
|---|---|---|---|---|---|---|
| / | 1500kW | 6600V | 159A | 735RPM | / | Vent fan |
Table 1 - Ventilation system motor parameters

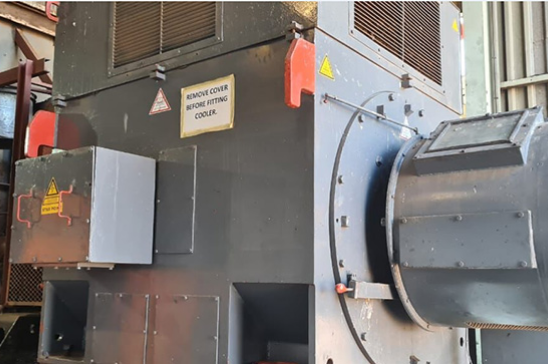

Figure 1 - The vent fan motor
(2)System solution
Based on Star King Tech's experience in VFD refurbishment projects in the mining industry, Star King Tech can offer a complete solution to its customers. According to customer requirements, the simple inverter is composed of manual bypass cabinet, transformer cabinet, power supply unit cabinet and control cabinet. The SKT100 functions as a local/remote button and an emergency stop button on the control cabinet.
Star King Tech suggests VFD solutions:
VFD products | Power | Rated Voltage | Rated Current | Quantity |
|---|---|---|---|---|
| SKT100 | 1600kW | 6600V | 175A | 1 |
Table 2 - VFD for ventilation system

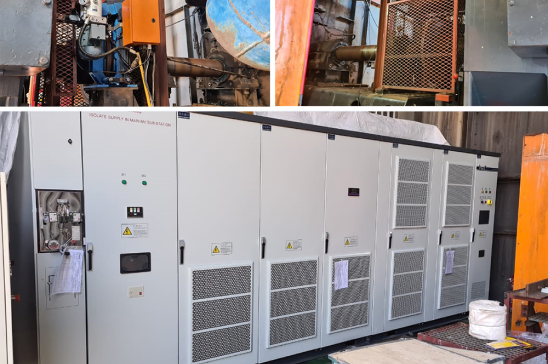

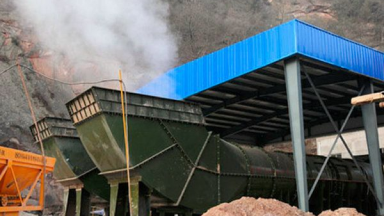

Figure 2 - Ventilation system
Application and Advantage
Some of the main advantages of simple frequency converters are as follows:
(1)Save energy
The ventilation fan and its system operate under optimal conditions and can save energy.
Table 3 - Daily electricity consumption from February to March 2021
(2)Wide range speed adjusted.
Because VFD is a step-less speed regulation, the vent fan can be run smoothly with wide speed range. It means that the speed adjusted can be elaboration and sensitive.
(3)ncrease grid line power factor.
The grid line power factor is over 0.97. It can increase efficiency of the grid power.
(4)Perfect output waveform.
Output waveform is perfect, less than 2% of distortion.
(5)Prolong motor working life time.
VFD can keep motor running at optimal situation.
Conclusion
The VFD-driven approach has many advantages over older technologies, such as significant energy savings. The transformed VFD system is working well, the customer is happy with our solution, and Star King Tech is meeting the customer's requirements.
Product recommendation

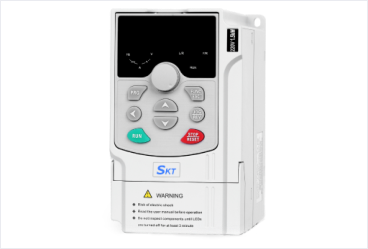

SKT100 series simple frequency inverter
