A waterworks in Ningbo realizes the automatic operation of water pump
We believe that a healthy life for human beings is inseparable from high-quality water. Our superior solutions help create a clean water environment while reducing water consumption, using water and energy more efficiently and achieving sustainable development.
[Project name]: Ningbo water works
[Use product]: SKT200 series high-performance vector frequency inverter
[Use advantage]: Energy saving, easy to operate
[Key words]: High performance vector frequency inverter municipal, Water plant
Share:
Release time: 2021-06-18
Project introduction
Located in Ningbo City, Zhejiang Province, the water supply plant is a comprehensive large-scale water supply enterprise group integrating supporting services such as water source development, water supply production and operation, water quality monitoring, water supply engineering design and construction. It undertakes the tasks of production, living and fire water supply in Ningbo City.
System Configuration
(1)Motor introduction
Motor Model | Power | Rated Voltage | Rated Current | Rated Capacity | Power Factor | Load Type |
|---|---|---|---|---|---|---|
| / | 500kW | 6KV | 60A | 630KVA | / | Pump motor |
Table 1 - Motor parameters of water supply system

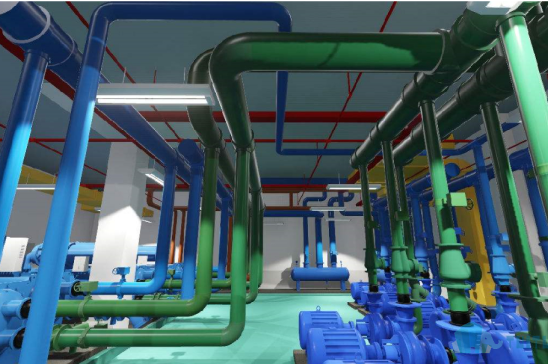

Figure 1 - Water supply system motor
(2)System solution
Variable frequency speed regulation technology is a new mature AC motor stepless speed regulation technology, widely used in the field of speed regulation, especially in the water supply industry, its unique and excellent control performance.Due to the special needs of safe production and water supply quality, constant pressure water supply pressure requirements are strict, so the application of frequency control technology is more in-depth.Constant pressure water supply mode has the advantages of advanced technology, constant water pressure, easy operation, reliable operation, energy saving and high degree of automation.
Star King Tech suggests VFD solutions:
VFD products | Power | Rated Voltage | Rated Current | Quantity |
|---|---|---|---|---|
| SKT200 | 600kW | 6.5KV | 175A | 2 |
Table 2 - Frequency inverter parameters of water supply system

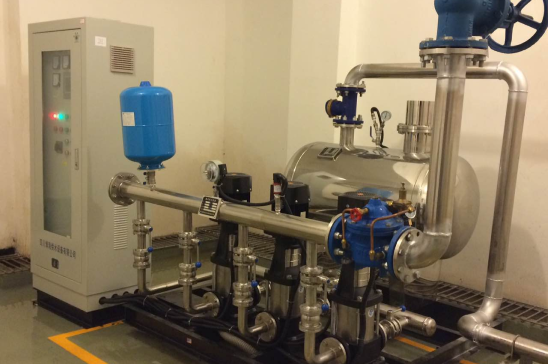

Figure 2 - Water supply system
Application and Advantage
Some of the key benefits of high-performance vector converters are as follows:
(1)Protective motor
With the development of electric power technology, frequency converters have replaced the previous multi-pump switches and valves to regulate water supply. The initial current can be limited within the rated current range to avoid any impact on the power system.
(2)Prolong motor working life time
VFD can keep motor running at optimal situation.
(3)Save energy
Conclusion
In general, after the installation of a high-performance vector frequency inverter, through advanced PID control, the water treatment plant can improve the process efficiency and obtain significant energy savings and reduce maintenance costs.
Product recommendation

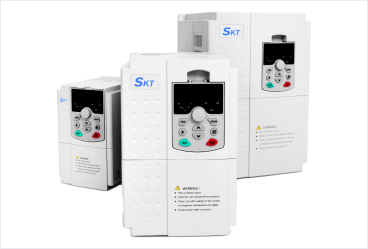

SKT200 series high-performance vector frequency inverter
