Application of soft starters in constant water supply systems
Constant pressure water supply is a water supply mode of water conservancy system.
[Project name]: Agricultural constant pressure water supply
[Use product]: SKTR2 series soft starter
[Use advantage]: Energy saving, easy to operate,Improve production efficiency
[Key words]: Soft starter,Irrigate,Water pump,Energy saving
Share:
Release time: 2021-12-22
Project introduction
Compared with the traditional water tank and tower water supply, the soft starter constant pressure water supply has many advantages such as energy saving and pollution-free water resources. In this article, we will take the constant pressure water supply of a SKTR2-driven pump in a customer case as an example to illustrate the application details of this series of soft starters in the constant pressure water supply.
(1)Introduction
The automatic water supply control system is in operation. The equipment detects pressure changes caused by changes in water consumption in the water supply network through a highly sensitive pressure sensor installed on the water supply network. The sensor can constantly transmit the change signal to the soft starter. After comparing the results of the microcomputer calculation and setting the pressure value, the soft starter will send a signal to change the frequency.
(2)Solution
The controller can change rotate speed and decide the using number of water pump. It can automatically adjust water supply volume at peak and valley to ensure that the water supply network pressure is constant so as to satisfy water demand of users.
System Configuration
(1)System solution
The system requires two sets of 4kw soft starters to control the pump to achieve constant pressure water supply, and one soft starter can control up to three pumps.
Star King Tech suggests solutions:
Products | Power | Rated Voltage | Rated Current | Quantity |
|---|---|---|---|---|
| 1000KW | 6KV | 159A | 2 |
Table 1- Soft initiator parameters

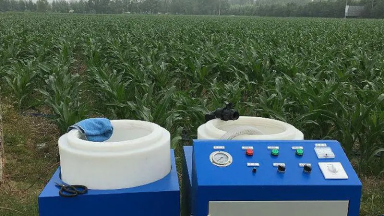

Figure 1 - Water supply system
Technology Features
Peculiarity 1
The motor parameter self-study in a rotate or static state can be completed. Easy to debug and operate. Provide higher control accuracy and response speed.
Peculiarity 2
Easy water supply function can make 3 pumps driven by one soft starter so as to control water supply in a constant pressure.
Peculiarity 3
Provide a variety of braking methods to realize quick stop.
Peculiarity 4
The soft starter system is of multi-protection for over current, over voltage, voltage shortage, over temperature, phase loss and over load.
Peculiarity 5
The higher heating point of the machine is more suitable for agricultural irrigation activities under high temperature environment.
Conclusion
The application of soft starter control technology in the field of constant pressure liquid supply and the increase of special control modules provide the market with an optimized constant pressure water supply solution. This special soft starter assembly automatic water supply control system has the characteristics of low investment, high degree of automation and complete protection functions. Soft starter is reliable, easy to operate, water saving and energy saving, especially no secondary pollution to water quality, excellent performance and low cost.
Product recommendation

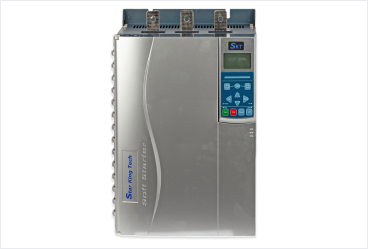

SKTR2 series soft starter
